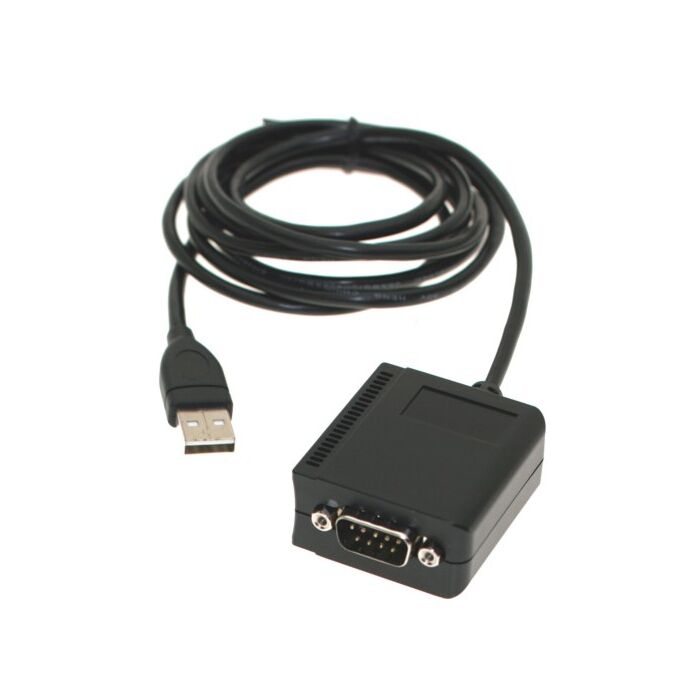

USB RS-232 Adapter Industrial Isolated - Surge Protected FTDI Chip

The USBG-SSRS1 USB RS-232 Adapter provides the scalability to quickly adapt to new USB technologies. Multiple modules can be added to a single USB interface allowing you to add WAN connectivity as needed. Secure serial cable connection is established through a Screw Lock Mechanism on the adapter.

The USB RS-232 Adapter uses Plug-and-Play features to help you install your device, simply plug the device in and follow the directions on your Install Wizard for completion. Configuration for Card Slots, I/O address, IRQ jumpers, and DMA is not necessary when you are connecting the devices, the system will recognize the device and install the drivers automatically. The USBG-SSRS1 USB RS-232 Adapter is an ideal solution for expanding your applications.

Additional Features:

USB Port:

• Fully compatible with USB 1.1 and Forward compatible with USB 2.0

Serial Port: The key benefits are:

• Supports 1 DB9-Male UART Serial port
• Supports 3-wire RS-232 signals (TxD, RxD, GND)
• Isolation: Built-in 2500Vrms Optical Isolation Circuits
• Surge Protection: Built-in 500W Bi-direction Surge Protection Circuits
• Data Bits: 7, 8
• Stop Bits: 1, 2
• Parity: None, Odd, Even, Mark, Space
• Baud Rate: 300 bps to 921.6 Kbps

OS Support:

• Windows 7, 8, and Windows 10
• Linux and Mac OS 10.X

Power Requirements:

• 5VDC Power solely from USB Bus, no external power supply needed.

Environmental:

• Operating Temp.: 0 to 55¨C (32 to 131¨F)
• Storage Temp: -20 to 85¨C (-4 to 185¨F)
• Operating Humidity: 5 to 95% RH

Form Factor:

• 1.77 (L)x1.63 (W)x0.86 (H) (4.50 x 4.15 x 2.20 cm)

Package Contents

• Paper installation manual
• Driver Disc
