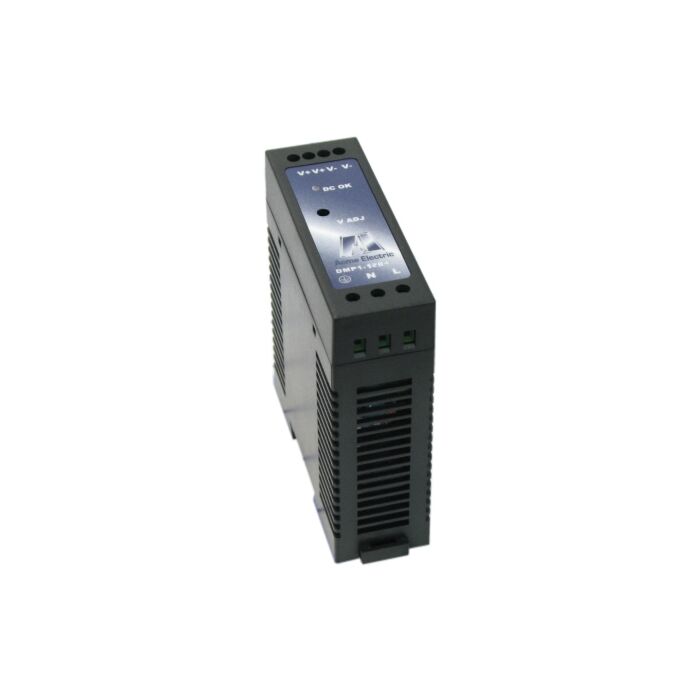

Din Rail 50 Watt Single Phase 12V Switching Power Supply

This Din Rail 12V 50 Watt switching power supply incorporates a tough plastic housing with a clipping mechanism and spring like function to secure the power supply to the Din Rail. The switching power supply housing is designed for space savings with a only a 32mm distance from side to side.. The power supply is designed to be terminal powered with its terminal connections on the top and bottom of its housing to allow for a manageable wire connection without interference. Applications may include: Industrial networks, Machine control, Process control, Conveyer equipment, robotics, vending equipment, and many others.

Features

• Narrow 32mm width conserves valuable space on the DIN Rail
• Universal input 90-264 VAC, 50/60 Hz without voltage gaps for full product application versatility
• Adjustable output voltage compensates for voltage drop
• “DC OK” LED indicator identifies local output status
• Fully enclosed touch-safe enclosure and terminals
• Certified to UL and CE safety standards for use worldwide
• UL508 listed for use at full-rated power
• All models capable of parallel connection to provide redundancy for critical load applications (use w/external diode)
• Meets SEMI F47-200
• RoHS compliant

Specifications

• Total Power: 50 Watts Max
• Input current: < 1.65 Amp
• Efficiency: 83%
• Output voltage: 12 VDC
• Output voltage Adj.: 10-14 VDC
• Output current: 5.0 – 3.57 Amp
• Reverse Volt Protection: < 24 V
• Overvoltage protection: Continuous Protection & Auto Recovery (105% - 150%)
• Overcurrent & short circuit protection: Continuous Protection & Auto Recovery (105% - 150%)
• Operating temperature: -10°C to + 50°C
• Storage temperature: -25°C to +85°C
• Approvals: UL, CE, CUL
• Status Indicators: “DC OK” LED
• Dimensions: 3.54 (H) x 1.26 (W) x 4.02 (D) / 90mm x 32mm x 102mm
